Dipping tapes

This equipment is designed for gauging tanks, especially in the oil industry.

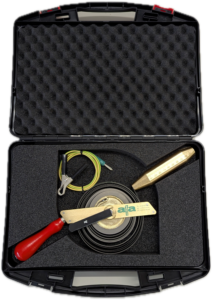

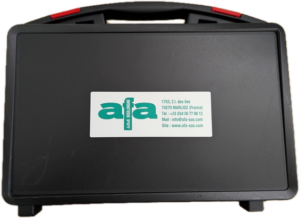

We offer two models, each supplied with a carrying case:

• Class I & II: 600 g brass weight attached to the tape with a screw through the weight and tape / black plastic handle
• Class S: 700 g brass weight attached to the tape with a screw through the weight and tape / red wooden handle

These gauges are equipped with a grounding device, ensuring the tape is at the same potential as the tank, thus preventing any electrical discharge in explosive environments.

CEE certified for Class S, I & II.

Available in 10 m OR 20 m OR 30 m lengths, with your choice of:

• Black tape
• Yellow tape
• Yellow nylon coated tape
• Stainless steel tape

Gauges can be sold with a COFRAC certificate upon request, and are also available in 50 m.

Tolerance of the gauges according to precision class:

• Class II: ± 2.3 mm for a 10 m gauge, ± 4.3 mm for a 20 m gauge, ± 6.3 mm for a 30 m gauge
• Class I: ± 1.1 mm for a 10 m gauge, ± 2.1 mm for a 20 m gauge, ± 3.1 mm for a 30 m gauge
• Class S: ± 1.5 mm for a 30 m gauge

Loop probe in 50 m, 100 m, or 200 m lengths available upon request.

BLACK DIPPING TAPE
Millimeter-division tape, engraved by oxidation.

REF.	LENGTH	SECTION
PIG.7631	10M Class II	13 X 0,25mm
PIG.7632	20M Class II	13 X 0,25mm
PIG.7633	30M Class II	13 X 0,25mm
PIG.7731	10M Class I	13 X 0,25mm
PIG.7732	20M Class I	13 X 0,25mm
PIG.7733	30M Class I	13 X 0,25mm
PIG.7831	10M Class S	13 X 0,20mm
PIG.7832	20M Class S	13 X 0,20mm
PIG.7833	30M Class S	13 X 0,20mm

YELLOW DIPPING TAPE
Millimeter-division tape, engraved by oxidation.

REF.	LENGTH	SECTION
PIG.7641	10M Class II	13 X 0,25mm
PIG.7642	20M Class II	13 X 0,25mm
PIG.7841	10M Class S	13 X 0,20mm
PIG.7842	20M Class S	13 X 0,20mm
PIG.7843	30M Class S	13 X 0,20mm

NYLON COATED YELLOW DIPPING TAPE
Millimeter-division tape, coated black on yellow.

REF.	LONG.	SECTION
PIG.7651	10M Class II	13 X 0,25mm
PIG.7652	20M Class II	13 X 0,25mm
PIG.7851	10M Class S	13 X 0,40mm
PIG.7852	20M Class S	13 X 0,40mm
PIG.7853	30M Class S	13 X 0,40mm

STAINLESS STEEL DIPPING TAPE
Millimeter-division tape, stainless.

REF.	LONG.	SECTION
PIG.7661	10M Class II	13 X 0,25mm
PIG.7861	10M Class S	13 X 0,20mm
PIG.7862	20M Class S	13 X 0,20mm
PIG.7863	30M Class S	13 X 0,20mm
PIG.INO.1	10M Class S + stainless weight	13 X 0,20mm
PIG.INO.2	20M Class S + stainless weight	13 X 0,20mm
PIG.INO.3	30M Class S + stainless weight	13 X 0,20mm

TAPE + BRASS WEIGHT

REF.	LONG.	ARTICLE	SECTION
PIG.76319	10M Class II	Black	13 X 0,25mm
PIG.76329	20M Class II	Black	13 X 0,25mm
PIG.77319.R	10M Class S	Black	13 X 0,20mm
PIG.77329.R	20M Class S	Black	13 X 0,20mm
PIG.77339.R	30M Class S	Black	13 X 0,20mm
PIG.76419	10M Class II	Yellow	13 X 0,25mm
PIG.77419.R	10M Class S	Yellow	13 X 0,20mm
PIG.77429.R	20M Class S	Yellow	13 X 0,20mm
PIG.77439.R	30M Class S	Yellow	13 X 0,20mm
PIG.77519.R	10M Class S	Nylon coated yellow	13 X 0,40mm
PIG.77529.R	20M Class S	Nylon coated yellow	13 X 0,40mm
PIG.77539.R	30M Class S	Nylon coated yellow	13 X 0,40mm
PIG.76629	20M Class II	Stainless	13 X 0,25mm
PIG.77619.R	10M Class S	Stainless	13 X 0,20mm
PIG.77629.R	20M Class S	Stainless	13 X 0,20mm
PIG.77639.R	30M Class S	Stainless	13 X 0,20mm
