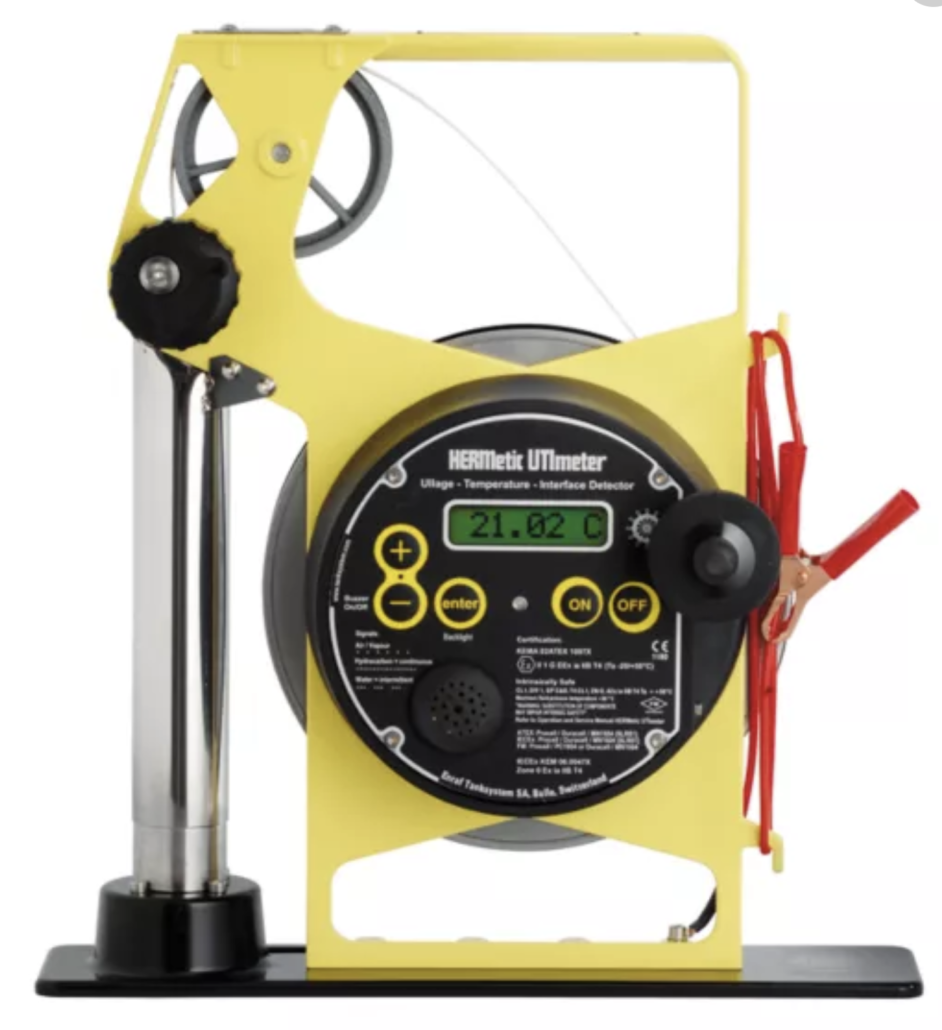

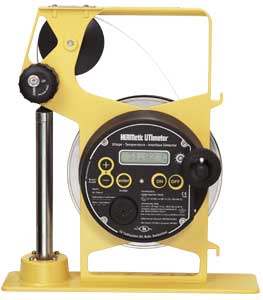

Portable Open Gauging (Ullage, Temperature and oil-water interface level) “TANKSYSTEM”
The unit enables 3, measurements in one single operation:
• Ullage
• Temperature
• Oil-Water interface level
SPECIFICATIONS
| Tape Resolution | + 2 mm | Temperature accuracy : | + 0,1° C |
| Tape lenght : | 15 ou 25 m ou 35 m | ||
| Tape accuracy : | +1.5 mm to 30m | ||
| Tape protection : | TEFZEL® | Battery wear indicator : | acoustic + display. |
| Ø probe : | 23 mm | Temperature display : | °C or °F LCD screen 8 digits |
| probe material : | Stainless steel 316, Viton® | ||
| Power : | 9V – 6F22 | ||
| Ambient temperature range | -20° à +50° C | Intrinsic safety : | Kema/ATEX II 1 G EEx ia IIB T4 / T.amb 50°C |
| Temp.sensor measurement : | -40° à + 90° C | Weight : | 4.5 KG |
Informations subject to change without notice.
